Trico, Ferrogram Maker, 43010

Trico is pleased to introduce the new and improved Ferrogram Maker (FM-6). The FM-6 dual slide maker is used in the first step in Analytical Ferrography. For greater productivity, the FM-6 is designed with two independent stations allowing two samples to be prepared concurrently.

Each station includes a holder which accurately positions a slide at slight incline over a new improved, powerful magnet, allowing particles to deposit from largest to smallest on a Ferrogram. This deposition pattern provides good resolution of large and small particles which facilitates a diagnosis of potential wear problems. Ferrogram preparation can be done automatically, semi-automatically, or manually at the operator’s option. In the automatic mode, the sample is deposited on the Ferrogram at a carefully controlled rate. At the end of the sample deposition cycle, the wash cycle is automatically initiated, and an audio and visual signal indicates completion of the Ferrogram. The semi-automatic and manual modes provide flexibility and further operator control to perform unusual samples.

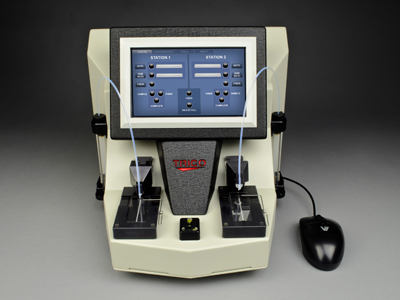

The newly, redesigned FM-6 features an interactive 7″ LCD touch screen, and USB and Ethernet port so you can easily plug in a keyboard, mouse, access useful reports on the web and connect it to our other Ferrography instruments like the newly redesigned DR-7 Direct Reading Ferrography and the FS-6 Ferroscope.

Ferrogram Maker

• Automatic operation releases labor for other tasks
• Simultaneously produces two Ferrograms in less than 20 minutes
• Ferrograms are transparent, allowing differentiation of metallic, organic, and non-metallic particles, for easy diagnosis
• Particles are sorted by magnetic susceptibility and size enabling quick interpretation
• Very little particle stacking occurs ensuring observation of important particles, critical to machine condition
• 7″ LCD display with a more modern look and feel
• New design includes a smaller footprint
• USB and Ethernet connections

Specifications
